ASIA PACIFIC SATELLITE INC
Striving for Space and Mankind

ICEYE Imaging

ICEYE Exclusive Partners

AP Satellite has concluded a strategic partnership and satellite image supply agreement for Small Satellite Synthetic-Aperture Radar (SAR) with ICEYE OY on May 27, 2019. ICEYE OY is a startup in Finland with small SAR satellite and it has concluded an MOU for pioneering new space market with AP Satellite to agree on working together in small SAR satellite project and satellite imaging project through this agreement.

The Leader of New Space Top performance small SAR satellite constellation

Not regulated under ITAR (Finland company)
Cost reduction
(1:100)
High resolution
1x1/3x3/
15x15 meters
Operating hours
24 Hours
Can shoot at night without any impact from climate change
Can transmit image within 3 hours after customer’s order
Revisit 6 times per day
Verified
SAR payload
Multi-mode
Multi-angle
Ultra-small satellite spacecraft

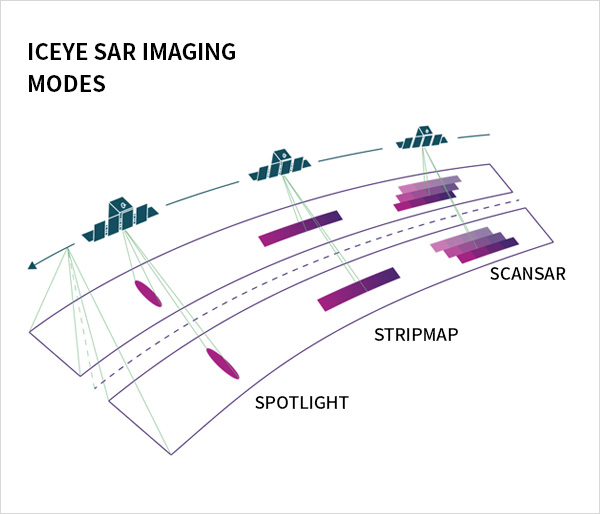

ICEYE SAR SATELLITES IMAGING MODES

ICEYE SAR-300 VALUE
Launch schedule 2018-2020
Altitude 500km
SAR bandwidth 100Mbps/500Mbps
Ground resolution 1x1m, 3x3m, 20x20m
Width 5km, 50km, 120km
Incident angle range 15˚- 40˚
Polarization VV
NESZ ←17dB
Ambiguity Ratio ←17dB
Ambiguity Ratio Yes

ICEYE SAR SATELLITES Specifications

Characteristics ICEYE-X Series
Weight 85 kg
Frequency characteristics and polarization X-band SAR, VV polarization
Resolution 15x15 / 3x3 / 1x1 meters
Dynamic range 14 bit
Image mode Strip map, spotlight, Strip map High, Scan SAR, In SAR
Communication (Downlink) X-band, 100 Mbits/s(400 Mbits/s from X6 onwards)
Product format SLC, GRD, others on request
Chirp bandwidth 300MHz, 450MHz from X6 onwards
Georeferencing 10 meters
Position control system Reaction wheels, magnetorquers, star trackers
Propulsion system Ion engines
